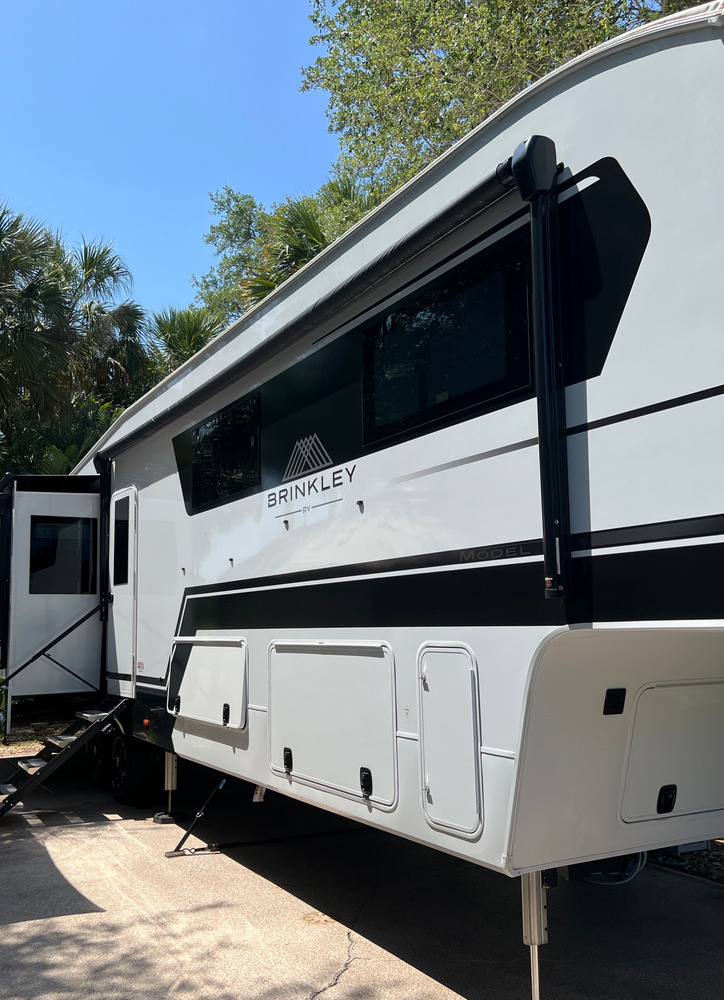

The 2025 Brinkley Model Z 3610 is a luxurious fifth wheel RV designed to accommodate up to 8 people comfortably. Here are its key specifications:

️ Dimensions & Weight

Length: 41 9

Height (with A/C): 13 4

Width: 8

Dry Weight (UVW): 14,695 lbs

Gross Vehicle Weight Rating (GVWR): 17,695 lbs

Hitch Weight: 2,591 lbs

Tanks & Utilities

Fresh Water Capacity: 75 gallons

Gray Water Capacity: 90 gallons

Black Water Capacity: 45 gallons

Water Heater: Tankless

Furnace: 35,000 BTU

️ Sleeping Arrangements

Master Bedroom: King-size bed

Bonus Room: Bunk/Sofa Bed with Trundle and Desk

Living Area: Tri-fold sofa

Total Sleeping Capacity: Up to 8 people

Kitchen & Living Area

Refrigerator: 16 cu. ft. 12V energy-efficient

Cooktop: 3 burners

Microwave: Residential 30

Seating: Theater seating with heat and wireless charging

Dining: Sliding desk/dining table with automatic extending leaves

Entertainment: 50 Smart TV with powered elevator, premium audio system

Fireplace: 5,000 BTU electric

Bathroom

Shower: 30 x 42 fiberglass with glass door

Toilet: Porcelain

Sink: Solid surface countertop

Ventilation: Maxxair fan with rain sensor

Construction & Features

Insulation: R40 floor and ceiling, R11 walls

Axles: Tandem 8,000 lbs.

Tires: 17.5 H-Rated (16 ply)

Leveling: Front and rear power leveling jacks

Exterior Storage: Ample pass-through storage

Pet-Friendly: Integrated pet bowls, ductless floors in main living areas
