THIS IS NOT YOUR GRANDPAS RV! 2026 THOR FOUR WINDS 21Z
6 WELDTEC LIFT FOX SUSPENSION 1380Ah LITHIUM 600W SOLAR CUSTOM INTERIOR

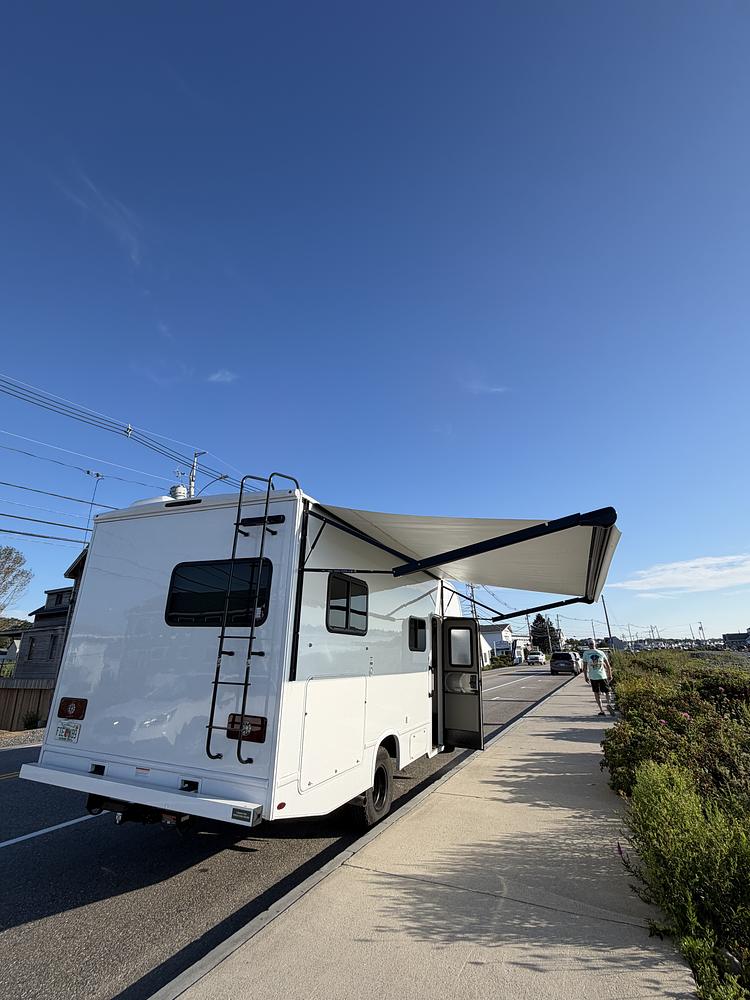

This nearly new 2026 Thor Four Winds 21Z has been transformed from a standard Class C into a lifted, solar-powered adventure rig built for extended travel, boondocking and remote work. It combines the comfort of a modern tiny home with an aggressive expedition-style stance.

Highlights include a 6-inch WeldTec lift, FOX suspension, Toyo all-terrain tires, a professionally organized 1380Ah heated lithium system, 600W of rooftop solar, Starlink Mini and a fully customized interior. The RV comes stocked with linens, pots, pans, flatware, bowls, plates and other essentials.

LIFT, SUSPENSION & TIRES

WeldTec 6-inch suspension lift
FOX shocks and steering stabilizer
Carrier-bearing drop
Toyo Open Country A/T III 285/70R17 tires on all six wheels
Spline-drive lug kit
Ford E-Series rear-wheel-drive dually chassis
Added fog lights with interior control switch
Professionally tinted front windows

These upgrades give the RV a taller, more aggressive stance and set it apart from virtually every stock Four Winds on the road.

HIGH-CAPACITY OFF-GRID POWER

This is far beyond a basic dealer-installed solar package. The professionally organized system is designed to support extended off-grid use while dramatically reducing generator time.

1380Ah total lithium capacity (approx. 17.7kWh nominal)
Three 460Ah Epoch Essential heated lithium batteries
Victron MultiPlus-II 12/3000 inverter/charger with 3000W output
600W rooftop solar: three 200W flexible panels
Victron SmartSolar MPPT 250/75 controller with up to 70A regulated solar charging
Two Victron Orion XS 50A DC-to-DC chargers providing up to 100A of managed alternator charging while driving
Shore-power, alternator and solar charging
Victron Cerbo GX MK2, GX Touch 70 display and SmartShunt battery monitor
Bluetooth monitoring with real-time battery, charging and consumption data

The system can power standard 120V outlets and appliances from the battery bank. Major components and wiring are protected inside a ventilated, serviceable custom enclosure in the rear storage compartment, with everything cleanly organized and labeled.

The original 4.0kW onboard generator remains fully operational as a backup for high demand, poor weather or extended use. A Starlink Mini has also been added for connectivity while traveling or working remotely.

CUSTOM INTERIOR

The generic factory-RV look has been replaced with a warm, residential feel:

Custom solid-walnut slab dinette table with hand-finished epoxy top
Brown leatherette dinette seating
Blue refinished cabinetry
Custom wood window valances
Updated finishes and bathroom accent wall
Custom-matched electrical switch and control panels
Laveo Dry-Flush toilet

The original toilet was replaced with a self-contained Laveo Dry-Flush system, which seals waste in disposable barrier material to reduce odor and eliminate regular sewer hookups. It is especially convenient for boondocking, cold-weather travel and faster departures. The original factory waste tank remains installed.

COMPACT, NO-SLIDE LAYOUT

At approximately 24 feet long, the 21Z is easier to drive, park and maneuver than a large Class A or oversized Class C. With no slide-outs, there are no slide motors, seals or mechanisms to maintain, and the entire interior stays accessible while closed.

Permanent rear bed
Cab-over sleeping area
Convertible Dream Dinette bed
Full bathroom and kitchen
Interior and exterior storage
Factory-rated seating and seat belts for up to five

FORD POWERTRAIN & CHASSIS

Ford E-Series chassis with 7.3L gasoline V8
Approx. 325 hp and 450 lb-ft of torque
Automatic transmission
Rear-wheel-drive dually
55-gallon fuel capacity
Factory-rated 8,000-lb hitch
12,500-lb GVWR / 18,500-lb GCWR

DIMENSIONS & CAPACITIES

Length: approx. 24' 1"
Width without mirrors: approx. 8' 3"
Interior ceiling height: approx. 7'
Fresh water: approx. 40 gallons
Gray water: approx. 35 gallons
Factory waste tank: approx. 24 gallons
Exterior storage: approx. 51 cu. ft.
Power patio awning: approx. 15'
Tankless water heater
Current measured exterior clearance: [INSERT MEASURED HEIGHT]

ADDITIONAL FEATURES

13,500-BTU roof A/C
30A shore power with automatic generator/shore transfer
12V refrigerator
Two-burner LP cooktop
Convection microwave with air-fryer function
Stainless-steel sink and flip-up counter extension
Smart TV
Touchscreen dash radio
Apple CarPlay, Android Auto and Bluetooth
Backup camera, cruise control and keyless entry
Power windows, locks and patio awning
Integrated exterior awning lighting

VEHICLE INFORMATION

Mileage: 4,345
Purchased new in February; still under factory warranty
Located in New Jersey
Asking price: [INSERT PRICE]
Starlink subscription/hardware included: [INSERT DETAILS]

This RV is for someone who understands the value of a completed, thoughtfully designed build. Serious inquiries only.
