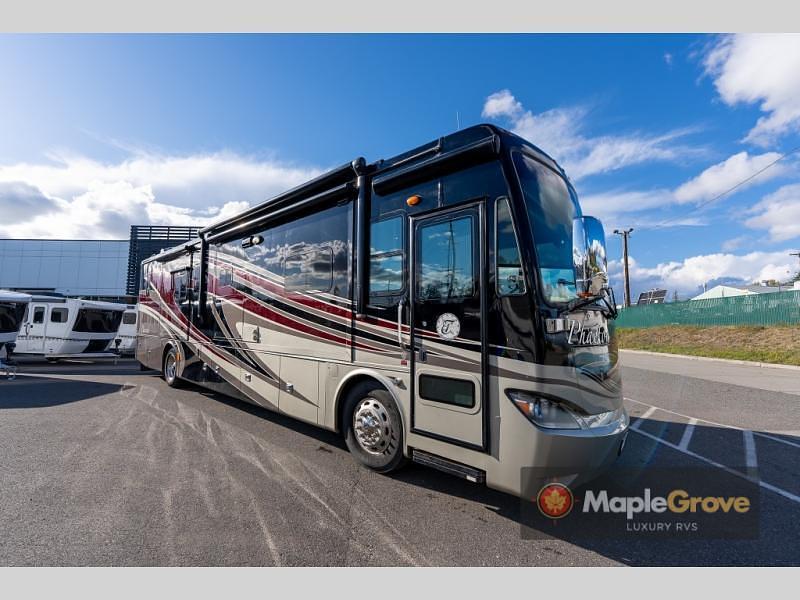

The quadruple slide out Phaeton 40 QBH from Tiffin Motorhomes features a rear full bathroom, an additional half bath and sleeping for up to seven.

As you enter this class A diesel motorhome at the front curb side, the front of the coach includes lots of overhead cabinets as well as the option for a center mounted TV.

Moving down the road side, a slide out houses a sofa bed, booth dinette, overhead cabinets and residential refrigerator. You may choose an optional gas/electric refrigerator. You may also make choices for the other contents of the slide includes a u-shaped booth dinette, a dinette with computer workstation, or an entertainment center with one leather lift recliner and flip table. Just back inside the coach, there is a TV facing the front with the option for a fireplace below.

Across the motorhome, a half bath includes a toilet, vanity sink and overhead cabinets.

Continuing toward the front, a slide holds the main components of the kitchen including an angled double kitchen sink, range, overhead convection microwave, overhead cabinets and a sofa bed. You may choose two leather lift recliners in place of the sofa bed as well as an optional exterior TV.

As you move to the rear, the bedroom includes a slide out with a queen size bed with nightstands at each side and overhead cabinets. The opposite wall holds a TV, overhead cabinets and drawers below.

The rear full bath includes a closet for an optional washer/dryer, a large vanity with sink, corner overhead cabinets, a large closet, more overhead cabinets, a toilet and a corner shower.

Standard Features (2014)

Mechanical Specs.

• Raised Rail Chassis Frame Air Ride (4 Air Bags up to 40', Air Bags on 42')

• Aluminum Wheels

• Exhaust Brake (36' & 40')

• Compression Brake (42')

• Adjustable Accelerator & Brake Pedals

• Allison 3000 MH 6-speed Automatic Transmission

• Air Brakes with Automatic Slack Adjusters & ABS

• 55° Wheel Cut

• Fog Lights

• Daytime Running Lights

• 18" VIP Steering Wheel

• Cruise Control

• Emergency Start Switch

• Overall Width: 101"

• Interior Width: 96"

• Fresh Water (Gallons): 90

• Black Water (Gallons): 50

• Grey Water (Gallons): 66

• LPG Tank (Gallons; can only be filled to 80% capacity): 35.7

• Basement Storage (Cubic Feet, Approximate): 36 GH, 111: 40 AH, 157; 40 QBH, 157; 40 QKH, 157; 40 QTH, 157; 42 LH, 152

• Wheel Base: 36 GH, 228": 40 AH, 266"; 40 QBH, 266"; 40 QKH, 266"; 40 QTH, 266"; 42 LH, 272"

• Tire Size: 275/80R22.5

• Minimum Garage Height: 13'

• Steel/Aluminum Reinforced Structure

Freightliner Chassis

• Cummins ISL 450 HP/1250 lb Torque (42 LH)

• GVWR: 35,320 lb (Except on 42 LH: 44,320 lb)

• GAWR Front: 14,320 lb

• GAWR Rear: 21,000 lb (Except on 42': 20,000 lb)

• GAWR Tag Axle: NA (42' Only: 10,000 lb)

• GCWR: 45,320 lb (Except on 42': 54,320)

• DEF Tank (Gallons): 13

• Alternator Amps: 160

• *Diesel Exhaust Fluid (DEF) is the active component used in Selective Catalytic Reduction (SCR) engines to reduce nitrogen oxide emissions by 90% to meet EPA standards.

• *All options may not be available on every model. Because of progressive improvements, specifications, standard & optional equipment are subject to change without notice or obligation.

Construction (Roof)

• One-piece, moisture resistant molded fiberglass roof cap provides insulation and strength and prevents water intrusion.

• A/C Condensation Drainage System that runs internally through the roof insulation and down the sidewalls, redirecting water underneath the motor home.

• 5 1/2" formed insulation

• Quiet Air Cooling System with return air and foil-wrapped cooling exhaust ducts

• Durable, tubular aluminum roof skeleton

• Easy-to-clean soft touch vinyl ceiling panel

Sidewalls

• Gel-coat fiberglass outside wall panel

• High-performance thermal insulation

• Durable, yet lightweight, tubular aluminum wall skeleton

• Decorative inside wall panel

• All sidewalls are approximately 2" thick

Floor

• Porcelain tile floor bonded to high-impact oriented strand board

• High-level engineered oriented strand board

• High-performance thermal insulation

• Durable, tubular floor skeleton

• Woven moisture barrier material

GENERAL INTERIOR

• 7' Ceilings

• LED Bulbs

• Soft Touch Vinyl Ceiling with Trey Ceiling in Living Area

• Porcelain Tile Floor Throughout Coach

• Scotchgard Treated Carpet in Slideouts

• High Gloss Raised Panel Hardwood Cabinet Doors

• Two Ducted Furnaces

• Solid Wood Cabinet Fascias & Doors with Concealed Hinges

• Complete Cable Wiring (Interfacing with Surround Sound & Satellite System)

• Home Theater Sound System with Concealed Speakers

• Chainless Solar/Privacy Shades

• Tank Level Monitor System

• Carbon Monoxide, LPG, & Smoke Detectors

• Electric Step Well Cover

• Wardrobe with Automatic Light

• Fantastic Power Roof Vents with 3-speed Fans

• 12 V Disconnect Switch

• Direct TV Receiver (Requires Subscription)

AVAILABLE OPTIONS:

• Medium Alderwood or English Chestnut Cabinets

• Stacked Washer/Dryer

• Central Vacuum Cleaner

DRIVER COMPARTMENT/COCKPIT

• Power Ultra Leather Driver & Passenger Seats with Passenger Footrest

• USB Dash Receptacle

• Contemporary Wraparound Dash

• Courtesy Light & Drawer in Step Well

• Dual Dash Fans

• Two Drawers in Dash

• Dual 12 V Dash Receptacle

• Single CD Player & AM/FM Stereo

• Fire Extinguisher

• Computer Slide-out Tray with Lock-out Rails on Passenger Side

• Power Solar/Privacy Windshield Shade

• Driver/Passenger Side Window Solar/Privacy Shades

• Color Rear Vision Monitor System with Side-view Cameras Activated by Turn Signals

• Adjustable Seatbelt Brackets

• Satellite-ready Radio (Requires Subscription)

AVAILABLE OPTIONS:

• Front Overhead TV

• In-dash Navigational System

• High-definition programming is not available on domed satellite antenna unless you subscribe to DISH Network

LIVING AREA/DINETTE SPECIFICATIONS

• Booth Dinette with Laminate Tabletop & Solid Surface Edging

• TV in Entertainment Center (NA on 36 GH & 42 LH)

• Ultra Leather DE Sleeper/Sofa on Passenger Side (NA on 36 GH)

AVAILABLE OPTIONS:

• Dinette with Computer Workstation

• Ultra Leather U-shaped Booth Dinette

• Ultra Leather L-shaped Chaise Sofa/Sleeper on Driver Side (36 GH, 40 AH, and 42 LH Only)

• Ultra Leather DE Sleeper/Sofa on Driver Side (NA on 36 GH & 42 LH)

• Ultra Leather Hide-A-Bed Sleeper/Sofa on Driver Side (NA on 42 LH)

• Ultra Leather Magic Bed on Driver Side (NA on 42 LH & 36 GH)

• Ultra Leather Magic Bed on Passenger Side (42 LH Only)

• Two Leather Lift Recliners on Driver Side (36 GH and 42 LH: NA)

• Entertainment Center with One Leather Lift Recliner & Flip Table on Driver Side (Deletes Midsection TV) (40 QBH, 40 QKH, 40 QTH Only)

• Entertainment Center with One Leather Lift Recliner on Passenger Side (42 LH & 36 GH Only)

• Entertainment Center with Two Leather Lift Recliners on Passenger Side (42 LH & 36 GH Only)

• Fireplace Below Living Room TV

• Ultra Leather Air Coil Hide-A-Bed Sleeper/Sofa on Passenger Side (NA on 42 LH)

MORE DETAILS AVAILABLE. PLEASE CONTACT US.
