We are excited

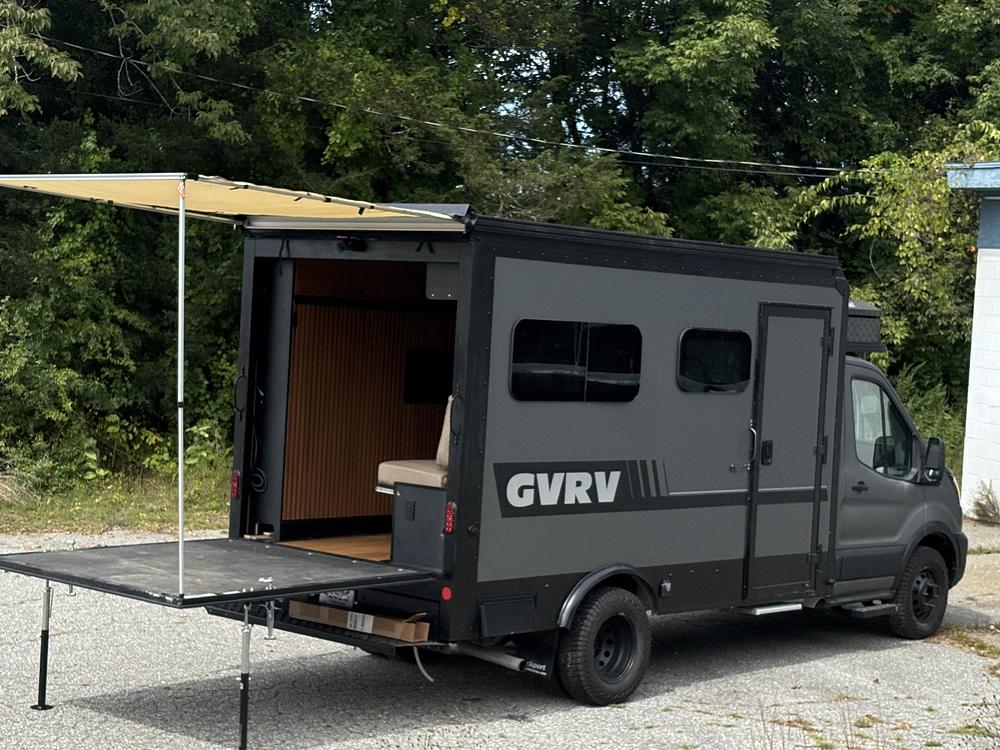

to list this eye catching conversion box body transit! It hosts
every option available for a
true off the grid boondock
camper, all while
maintaining a sleek open
floor plan. All materials and
finishes have the highest
durability available from the
11 ply u/v furniture grade
panels that are water and
solvent proof to the Corian
counter top that is stable in
any climate. This box body
1" of xps in the ceiling and
1" of xps in the floor with limited thermal bridging to maximize efficiency and space savings. In the entry way
there is a large 42"x24"
shower with easy clean composite tile and teak floor. This
layout was possible by use
of a queen size Murphy bed
that is spring counter
weighted to make for an easy
to open and close bed.
Mounted in the bed panel is
a 32 1080p i.p.s monitor
that provides the highest
viewing angle of any
monitor on the market.
Climate control is provided
by a combination of a high
efficiency 9k btu minisplit system with heat pump. This van also
manages to fit one of the
largest battery banks
available on the market. To
provide power for days at a
time we installed a 1,000 watts of solar feeding into a 10,240
Watt 48v battery bank
Controlled by an eg4 and victron system.

Now for the quick spec list.
Plumbing
30g. fresh water
20 g. Grey (heated)
4 g. Isotemp Electric H.W heater
Compocloset self contained
toilet
Electronics
10,240 watt 48v battery (=to 800 a.h at 12v)
Eg4 ll v2 with built in fire suppression
Eg4 3k inverter and mppt charger
Victron 48-12 30 converter
Victron 12-48-8 dc to dc charger
1,000 watts of solar panels
Progressive Dynamic panel
3- 20 amp gfci outlets with
built in quick chargers (u.s.b
and p.i.d lightning)
32" 1080p i.p.s monitor
(178Â* viewing angle)
Heat/AC
9k btu high seer minisplit
kitchen
Dometic 8 c.f ac and dc
fridge
Deep stainless sink
