Vehicle Information:

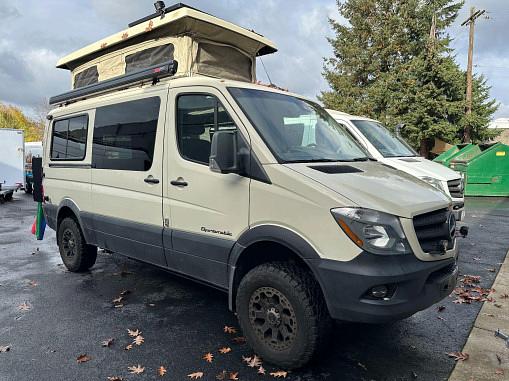

Chassis: Mercedes-Benz Sprinter 2500 Low Roof 3.0L V6 4x4

Notes: Van is an RVIA certified build Model Year: 2017
Color: Stone Grey

Body Modifications:
Sportsmobile Pent-House Pop Top 1
CRL T-Vent Windows 3
Linex Treatment of Van Body 1 Rockers
Mudflap Relocation Kit

Rack & Ladder
Sportsmobile Side Ladder 1


Awning:
Fiamma F45 Manual Awning 1 Sizing Information: 10ft

Exterior Electrical
Glass Solar - Not Walkable - 100w 2
Auxiliary Solar Array Port 1
Side/Campsite Lighting 1
Aftermarket Driving Lights 1
City Power Connection 1

Undercarriage
Exterior Accessories Rear Doors

Tier 2: Van Compass Stage 4.3 with added Leaf Springs and Falcon manually
Adjustable Shocks. Includes Baja Rear Shock Brackets 1 Agile Offroad Big Brake Kit Upgrade 1
Black Rhino Wheels (5) 1 265/70/17 BFG K02 Tires 1 AMP Research

Reatractable Running Boards 1
Owl Vans B2 Carrier (Passenger) 1 Flatline Van Co Exterior Storage Box 1
Total:

Electrical -

Base System: Switching: Receptacles
Renogy 300AH Lithium - 2000W Inverter - 50A DC-DC/MPPT Charger - 25A City
Power Connection 1 System inspected and passes all codes/certifications
Renogy Core System Monitoring 1
Mercedes OEM Upfitter Dash Switching (Included up to 4 switches) 1
Receptacles - 3 USB/C Locations, 3 120V Duplex Locations 1

Interior Lighting - 2 Zone Overhead Lights, 4 Reading Lights, Garage Light, Under Cabinet Lighting. 1 Audio + Visual
Alpine Stereo w/ Apple Car Play/Android Auto 1 Backup Camera 1 Custom Electrical
-
Plumbing - 20gal fresh tank, 10-20gal gray tank. Pump, Water Fill/City Connection. 13x15 Sink,
Faucet with extendable hose 1 Hide-a-way Shower System

Outdoor Shower 1 Total -

Rixens Enterprises MCS5 Hydronic with S-3 Diesel Furnace Kit 1

Appliances -
Isotherm 85L Refridgerator. 12VDC 1

Paneling and
Insulation -
Base Paneling: Wall and Ceiling Paneling - Fabric Wrapped, 3 Layer Insulation
(Sound deadening, Thinsulate, Amavic reflective foam on wall panels ) Lonseal Sheet
Vinyl Flooring with Aluminum Trim 1
Marine Vinyl - Walls 1
L Track Recessed into the Rear of the Garage for Mounting Bikes 1
Total -
Sleeping + Seating -
Bench Seat on DS. System Installed underneath 1

Drawer Cabinet + Fresh Water System 1 Position: Rear
Hidden Shower Stall w/Flip up Counter.
Passenger Side:
18-24" Sink Cabinet (Upgraded Sink Size)
Drawer Bank 16-24" 4 Drawer: 4 Medium 1 Position: Rear
Refrigerator Cabinet 1 Position: Fore
Total -
Interior Accessories -
Tables: Mount Locations: Lagun Table with a Holster
Drop Down Exterior Table at Galley 1

Window Covers + Bug
Screens
Habitat Window Covers 6
Slider Door Bug Screen - Bug Wall 1
Vanmade Gear Custom Slider Door Bug Screen
