2025 Expedition Vehicle for Sale.
Unfinished project is 70% complete reason for selling
relocation abroad.
The boxes are manufacturer with 50mm Divinycell panels.
All windows are KCT dual -paned glass from Germany.
A large roof hatch over the bed (1000 x 700 mm).
A large kitchen whit a panoramic window (1200 x 600 mm)
Dual Mille induction Cook top
Mille combo Steam Oven.
Large Stainless-steel sink (44 x 44 x 20 cm)
Acuva 600 filtration system with 2.0 UV-LED light.
Gray water tank capacity (220 liters)
Fresh water tanks capacity (two tanks 320 liters each, total
640 liters)
Solar Panels total 1980 Watts.

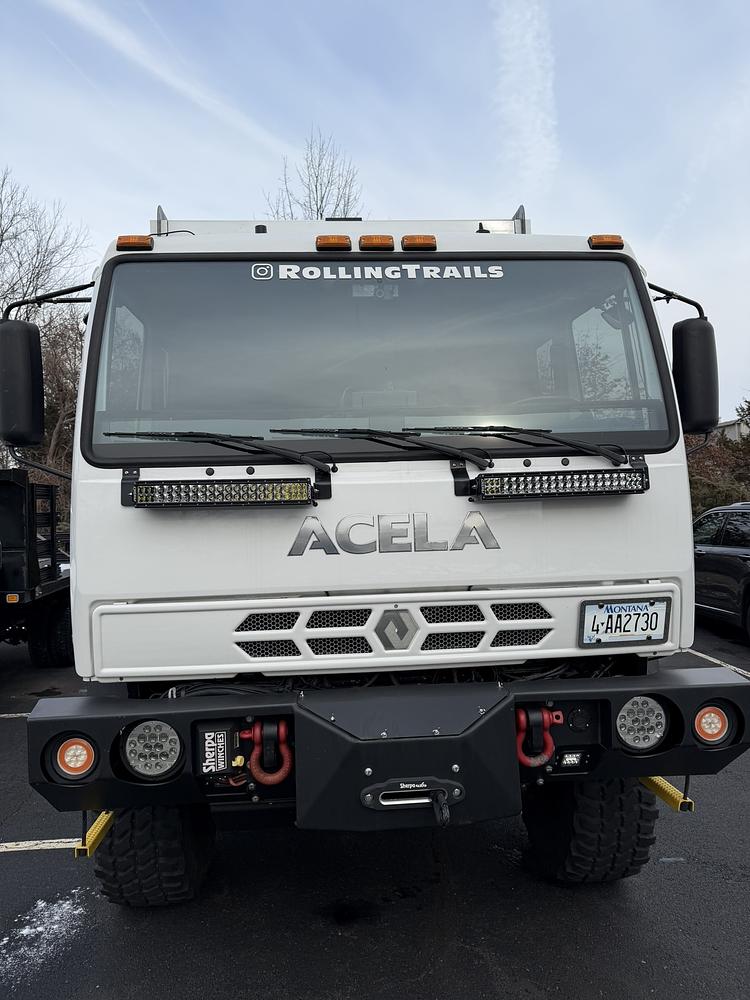

2019 Truck Acela Monterra GL 6x6
Key Features,
MTV M1088A1 03-00 Stewart & Stevenson
Full-Time all-Wheel drive
330HP Caterpillar 7.2L Turbo-Charge Diesel Engine.
Allison Automatic 7 speed Transmission.
U.S. Army Ultra-Reliable Certification.
22 Ground Clearance.
Hight-Speed Gearing.
Back-up Camera.
Central Tire Inflation System (CTIS)
Cab-Mounted Electronic Controls, Operable While Driving in
Highway, Cross-Country, Sand/Mud/Snow and Emergency
Modes.
HVAC 47.000 BTU Heating Capacity
29.900 BTU Cooling Capacity
Entertainment AM/FM/XM Compatible 6.2 Touchscreen
Stereo.
Trim Commercial-Grade Trim Package, Heavy-duty Heat and
Sound Insulation.
VEHICLE SPECIFICATIONS
Width 96 in (2,438 mm)
Height 112 in (2,845 mm)
Pintle Height (Laden/Unladen) 33 / 36 in (838 / 914 mm)
Length 270 in (6,858 mm)
Wheelbase 161 in (4,089 mm)
1 Cab to Axle 115.5 in (2,934 mm)
Turning Radius 56.4 ft (17.2 m)
Ground Clearance 22 in (559 mm)
Under Axle 14.4 in (366 mm)
GVWR* 44,650 lb (20,253 kg)
Approach/Departure Angles* 40° / 70° 40° / 70°
Payload* 30,000 lb (13,608 kg)
Maximum Towed Load 21,000 lb (9,525 kg)
Fuel Tank 74 gal
Range 400+ mi (645+ km)
Maximum Grade/Side Slope 60% / 30% 60% / 30%
Caterpillar 3126 / C7* 6-Cylinder, 7.2 L, Electronically
Controlled, Fuel-Injected, Turbocharged
and Aftercooled, EPA Certified
Rating 330 HP (246 kW) @ 2400 RPM
Displacement 441 cu in (7.2 L)
Torque 860 ft-lb (1,166 Nm) @ 1440 RPM
Fuel Type Diesel
Lubricant 15W40, Synthetic Blend
Allison MD 3700/3070SP Automatic, 7-speed, Electronically
Controlled Power Take Off
Full-Time AWD Integral Transfer Case
Torque Split Normal Operations: 30% Front / 70%
Rear Off-Road Mode: 50% Front / 50%
Axles, Meritor, RF-611 Series
Cab
Locker Automatic Detroit Style, Intermediate Axle
Front 14,700 lb (6,668 kg) GAWR
Intermediate 16,661 lb (7,557 kg) GAWR
Rear 16,661 lb (7,557 kg) GAWR
Carrier Single Reduction, Amboid-Gearing Bevel
Wheel End Wheel End Reduction, Ratio 2:1
Final Gear Ratio Standard: 7.80:1
Optional 6.14:1 Available
Front Axle Steering Angle 35°
Steering Power Assisted, Recirculating Ball,
Adjustable Tilt Wheel
Suspension Parabolic-Tapered Leaf Springs with
Hydraulic Twin-Tube Shock Absorbers
Brakes
Primary Dual-Circuit, Four Channel Air, Anti-Lock
Braking System (ABS)
Supplemental Air Actuated, Driver-Controlled Exhaust
Jake Brake
Tires 46 in Military Tires 395/85R20
Spare Rack-Mounted, Hydraulic Lift
System Dual Voltage, 12/24VDC, Central Power
Distribution Panel
Electrical
Alternator 24V/185A Alternator, 24V-12V/50A
Converter/Battery Charge Controller 12V
Output -- 100A (200A Optionally Available)
Starter 24 VDC, Waterproof
Batteries (4) 6TL Commercial Batteries, 3000 CCA,
480 CA (Combined)
General Extended Cab-Over Design
Trim Commercial-Grade Trim Package,
Heavy Duty Heat and Sound Insulation
Entertainment AM/FM/XM Compatible 6.2" Touchscreen
Stereo
Power (2) 2.1A USB Power Ports, (1) 12VDC Cig.
Style Plug
Seating 2-Person, Adjustable, High-Back, Air-Ride
Seats (3-Person Optional)
Mechanical Access Electric/Hydraulic Tilt
HVAC 47,000 BTU/Hr (13.8 kw) Heating Capacity
29,000 BTU/Hr (8.8 kw) Cooling Capacity
Airflow 334 SCFM 9.5 m / min
Air-Ride Seating with Scheel-Mann seats handcraft in
Germany. This seats feature orthopedic contours, infinity
recline, adjustable thigh support, and optional lumbar
bolsters, designed for days, not hours behind the wheel.
The seats are heated.
Webasto engine heater warms up the engine before
starting preventing cold start.
Sherpa 4x4 'Stallion' - 25,000Lb Winc
