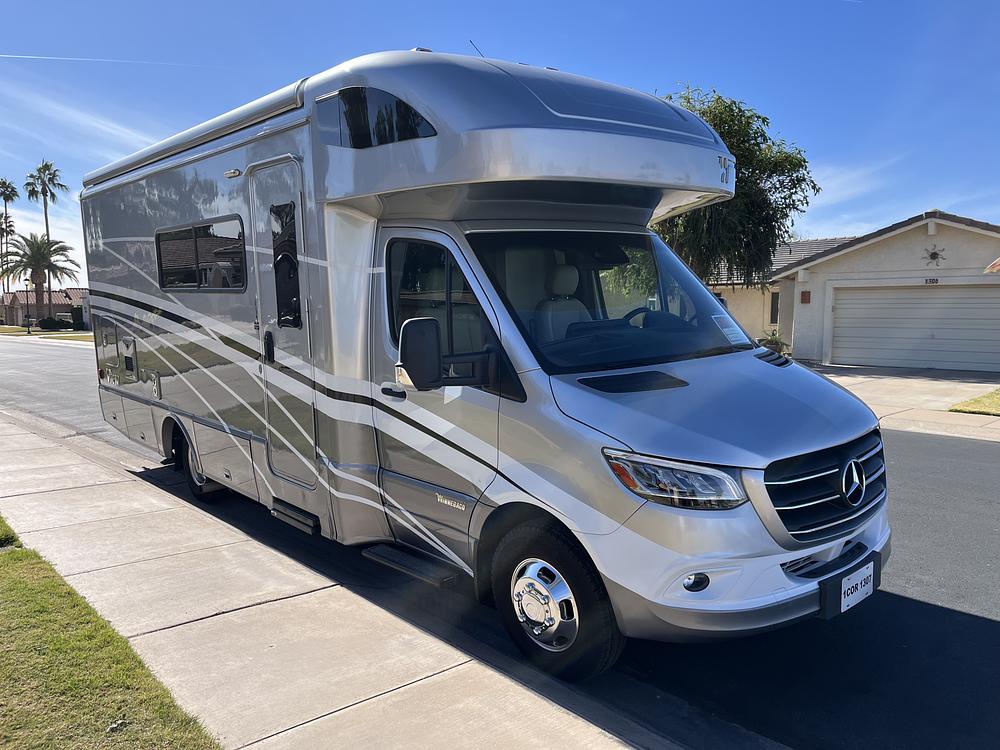

The 2023 Winnebago View 24D is a 25.5-foot, luxurious Class C motorhome built on a Mercedes-Benz Sprinter chassis, featuring a 188-hp turbo-diesel engine, full-wall slideout, and Murphy+ bed system. Designed for up to 6 people, it offers a modern, tech-forward, and fuel-efficient experience with a 10 cu. ft. compressor refrigerator, 200-watt solar, and advanced safety features. The 2023 24D is designed for both off-grid capabilities and comfortable, easy-driving travel.

Key Features and Highlights
Transferrable 2 year Mercedes Extended Warranty through 1/26/2028.
Chassis & Performance: Built on the Mercedes-Benz VS30 Sprinter chassis, powered by a 3.0L V6 turbo-diesel engine with 188 horsepower and 325 lb-ft of torque. (70Hp gain and 98lbs average torque gain engine performance tune added)
Interior & Sleeping: Features a large 36-inch depth full-wall slide, a queen-sized Murphy+ bed with a euro-style support system, and a U-shaped dinette.
Kitchen & Bath: Equipped with a 10 cu. ft. 12V double-door refrigerator/freezer, convection oven, and a rear bathroom.
Technology & Power: Includes the MBUX touchscreen infotainment system (voice control, navigation, Wi-Fi hotspot), a 2,000-watt inverter, and 200 watts of solar power (expandable).
Exterior: Features a 16-foot powered awning, LED lighting, and pass-through storage.
Climate Control: Utilizes the SuperShell Sleeper Deck for enhanced insulation.
Specifications
Length: 25' 6"
Exterior Height: 11
Fuel Capacity: 26.4 gallons
Fresh Water Capacity: 30 gallons
Chassis
Mercedes-Benz Sprinter Chassis
3.0 L 6-cylinder, 188-hp, turbo-diesel engine 7G -Tronic automatic transmission, 220-amp. alternator
Adaptive ESP technology
Hydraulic brakes w/ABS

Trailer Hitch6 5,000-lb. drawbar/500-lb. maximum vertical tongue weight w/7-pin connector
Stylized aluminum wheels
Spare tire
Hydraulic leveling jacks w/automatic controls (front and rear)

Weights & Measurements
Exterior Length 25'6"
Exterior Height 11'
Exterior Width 7'6.25"
Exterior Storage (cu. ft.) 30
Awning Length 16'
Interior Height 6'8"
Interior Width 7'3"
Freshwater Tank Capacity (gal.) 30
Water Heater Capacity (gal.) Continuous
Holding Tank Capacity Black (gal.) 41
Holding Tank Capacity Gray (gal.) 41
LP Capacity (lbs.) 50.76
Fuel Capacity (gal.) 24.5
GCWR (lbs.) 15,250
GVWR (lbs.) 11,030
GAWR - Front (lbs.) 4,410
GAWR - Rear (lbs.) 7,720
Wheelbase 170"
Sleeps 6

Cab Conveniences
MBUX Touchscreen Multimedia Infotainment Center with Navigation, WiFi hotspot, Intelligent Voice -Control and Rear Color CameraAirbags driver, passenger, side and curtainHeated power control cab seats armrest, adjustable lumbar support, headrest, recline, slide, and -manual swivel3-point seat beltsClimate controlLeather-wrapped steering wheelPower door locks w/remotePower windowsPower mirrors w/defrost and turn signalsCruise controlActive lane keeping assistActive braking assistRain sensor w/integrated wet wiper systemPower assist steering w/tilt wheel12V/USB powerpointsWeatherTech windshield and cab window blindsDash appliqué package2 cab seat lounge cushionsHill start assistCrosswind assistAttention assist
Electrical System
Service Center light, cable TV input, 30-amp. power cord, portable satellite dish hookup, QuickPort -service connection hatch
Automatic dual battery charge control
Exterior AC duplex
Exterior antenna jack
Generator auto transfer switch
Battery disconnect system (coach)
AC/DC load center/converter unit
2 deep-cycle, Group 31 RV batteries
2,000-watt pure sine wave DC/AC inverter
(2) 100-watt solar panel/battery charger w/controller, junction box, and plug for additional portable -solar panel
3,200-watt Cummins Onan Diesel generato

Interior
32" HDTV
U-Shaped dinette (24D)
LED lights
Satellite system ready
Amplified digital HDTV antenna
Powered roof vent rain cover, electric lift, remote control, thermostat operation (front bunk)
MCD solar/blackout roller shades
Systems monitor panel
Tinted coach windows
Assist bar
Vinyl flooring throughout
Soft vinyl ceiling
110V/12V/USB charging stations
Roof wiring access port
Toe kick lighting
Entertainment System Blu-ray disc player and Bluetooth Soundbar

Galley
Laminate countertops
Microwave/convection oven w/touch control
2-burner induction & LP range cooktop
10.0 cu. ft. (12V) 2-door compressor-driven refrigerator/freezer
Cold water filtration system
Water-pump switch w/light
Pantry (24D)
Cabinets with accent lighting
Lighted soft close drawers
Integrated paper towel holder
Double stainless steel sink w/two sink covers
Mini blinds
Toe kick lighting

Bath
Shower 24" x 32" (24D)
Retractable, self-cleaning shower screen
Oxygenics flexible showerhead
Shower skylight
Composite Toilet (24D)
Powered roof vent w/rain cover
Lavatory cabinet
Medicine cabinet
Mini blinds (24D)
Tissue holder
Removable clothes rod
Robe hook(s)
Integrated facial tissue holder
Toe kick lighting

Bedroom
Murphy+ bed w/deluxe queen mattress, Euro-suspension system, gel foam topper (24D)
MCD blackout roller shades
Wardrobe cabinet
Metal clothes rod
Room divider curtain
110V/USB charging station (24D)

Exterior
Automatic entrance door step
LED porch light w/interior switch
Stepwell light w/interior switch
Front and rear mud flaps
Aluminum cab steps w/logoed tread and loop attachment
Powered patio awning w/LED lights and Bluetooth control
Large pass-through storage compartment (24D)
Ladder

Heating & Cooling System
15,000 BTU air conditioner w/heat pump
20,000 BTU low-profile ducted furnace

Plumbing System
Service Center color-coded labels, pressurized city water hookup/tank diverter valve, drainage valves, exterior wash station w/lighted pump switch
Truma AquaGo Comfort Plus Tankless water heater
TrueLevel holding tank monitoring system
Heated drainage system
10' sewer hose
Winterization Package water heater bypass valve and siphon tube
On-demand water pump
Lockable water tank fill
Permanent-mount LP tank w/gauge
LPG accessory connection (patio area)
Black holding tank flushing system

Safety
LPG leak, smoke and carbon monoxide detectors
Fire extinguisher
Ground fault interrupter
Child seat tether anchor (24D)
