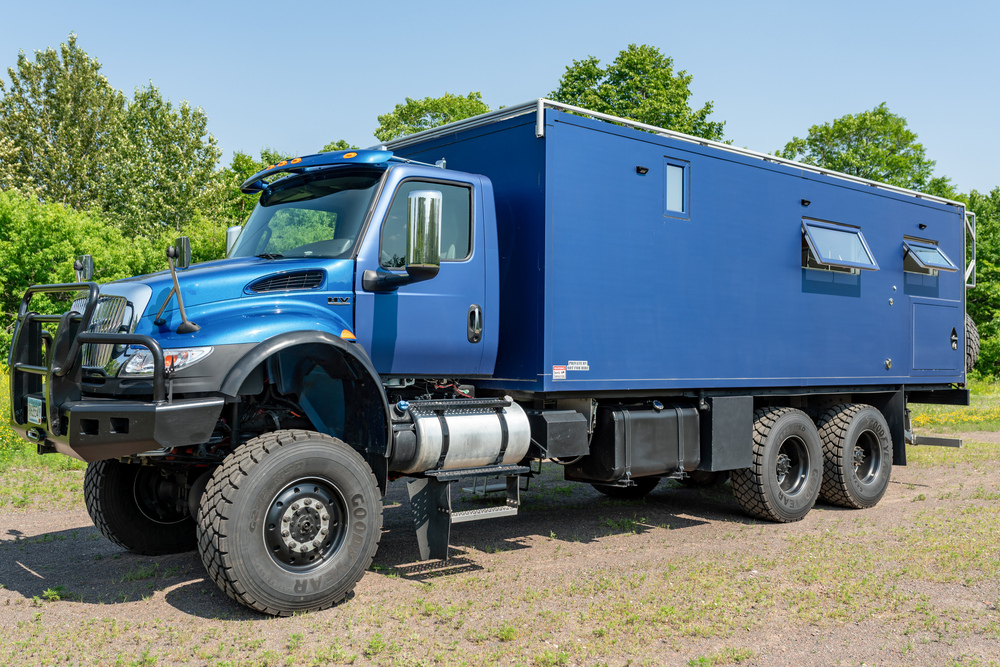

SOLD Global Expedition Vehicle Habitat on 2022 International 6x6

Features & Specifications

The International HV607 is a work-ready rig with legendary pedigree, built to take on the rigors of jobsites where durability, reliability, and maintainability matter most. This example is a Cummins L9-powered juggernaut with Allison 6-speed Rugged Duty Series (RDS) automatic transmission, hi/lo transfer case, and 6x6 conversion completed by Tulsa Truck Manufacturing with locking differentials on all three axles, including a center locker. There are a couple of items that need to be finished like wiring the front winch, wiring the tire winch, finishing the hood wrap and hooking up the composting toilet which most people can do themselves.

The 23 ft. rig features a custom cabin built by the pros at Global Expedition Vehicles. The cabin is comprised on 60 mm. thick composite with closed-cell foam insulation sandwiched between fiberglass-reinforced panels. Inside the cabin is an extra-large kitchen galley with custom Walnut countertop, induction cooktop, and large drawers. It also features a dry bath with 30 in. x 30 in. shower stall and queen-sized bed area. All windows and one sky-lights are KCT dual-panel glass units with integrated blinds and insect screens. Finally, it offers a custom Natura opening wall measuring approx. 52 in. x 31 in. with screen and KCT window inside.

It also offers massive energy capacity, including:

8 24V, 1080 Ah. Battleborn Gamechanger batteries

2 Victron Energy Quattro 24V/5000VA/120 amp electrical system

12V/24V/120V and 240V wiring

2000W solar panel array w. two Victron MPPT 150/70 Smart Solar charge controllers

4 Victron Orion-Tr Smart 24/12 - 30 DC to DC chargers to charge house batteries while driving

1 Victron Orion-Tr Smart 12/24 - 15 DC to DC to charge the truck batteries from the house batteries

Additional features and options include:

Cummins L9 turbo diesel

350 hp., 1,050 lb.-ft. torque

Allison 3000 Rugged Duty Series 6-speed automatic transmission

Hi/Lo transfer case

6x6 chassis

Locking differentials on all 3 axles

Alcoa Aluminum wheels (+2 spares)

425/65R22.5 Goodyear MSD Tires 44.6 dia. 20 ply (+2 spares)

Buckstop front bumper

Front & rear 25,000 lbs. Sherpa Winches mounted (not wired)

270 gal total fuel capacity, including 2 extra fuel tanks (+100 gal)

Fuel transfer pump w/ water separator & filter

Water separator & fuel filter

Approx. 60 gal gray water tank w/ electric drain valve

Approx. 130 gal custom water tank

Isotemp Basic 40L / 11 gal water heater

Remco 12v water pump

Custom power aluminum 3-stage entry steps

Custom rear steel bumper w/ custom aluminum Mansfield bar (adjusts to up position for rear clearance)

80/20 mini-split mount on the rear of box

80/20 Mount for future storage box

CURT Hitch commercial duty class 5 hitch (2.5 in.)

Pass-thru between cab and habitat

Mitsubishi MSZ-FS18NA & MUZ-FS18NA mini-split 18,000 btu cooling & H2i plus performance offers 100% heating capacity at -5 degree and 70% to 80% heating capacity at -13-degree Fahrenheit

Ruvati 28 in. Workstation Sink

0.75 in. Bamboo Flooring

Vitrofrigo DRW 180 Dual Drawer, Dual Zone fridge/fridge, fridge/freezer or freezer/freezer

Vitrofrigo DRW 70 fridge or freezer

MoRyde 90 in. x 36 in. tray in garage

Rigid scene LED lights

weBoost antenna
